Fine-pitch LED technology has changed the way large-format screens are used in meeting rooms, control centers, studios, retail spaces, and premium presentation environments. COB LED display technology is particularly relevant when close viewing distances make pixel density, surface protection, and image uniformity important. SMD remains a widely used approach with its own strengths, so the right comparison should cover more than resolution alone. Ledman’s DS Series, with 0.7mm and 1.2mm pixel-pitch options, offers a useful example of how COB-oriented engineering can address demanding indoor applications.
How COB And SMD Technologies Differ
COB, or Chip-on-Board, places LED chips directly onto a substrate before applying protective encapsulation. This construction reduces some of the physical separation associated with traditional packaged LEDs and creates a more integrated display surface.
SMD, or Surface-Mount Device technology, uses individually packaged LED components mounted onto circuit boards. Each package typically contains the required red, green, and blue LED elements, making the manufacturing process familiar across many established display applications.
The distinction becomes more noticeable when screens are installed close to viewers. An indoor LED video wall with fine pixel spacing can expose differences in surface structure, pixel uniformity, and physical protection that may be less obvious from longer viewing distances.
Pixel Pitch And Close-Range Image Quality
Pixel pitch describes the distance between adjacent pixels. Smaller spacing allows more pixels to occupy the same physical area, which is valuable when viewers are positioned close to a large screen.
Fine-pitch SMD products can deliver detailed images, but reducing the spacing also creates tighter mechanical requirements. As components become smaller, manufacturing precision and surface protection become increasingly important.

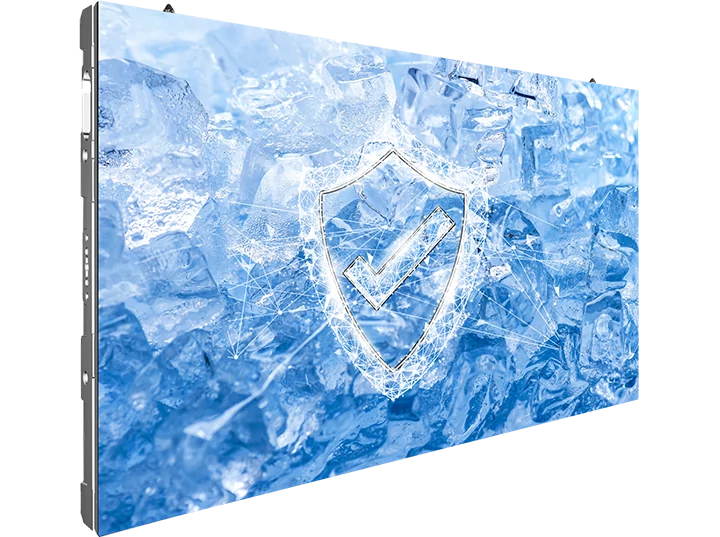

COB technology can support very fine pixel pitches while maintaining an integrated surface. The DS Series, for example, offers 0.7mm and 1.2mm configurations. Such options can suit environments where presentations, dashboards, graphics, and high-resolution video need to remain clear from relatively short viewing distances.
Surface Protection And Anti-Collision Performance
Physical durability matters considerably in shared indoor environments. Screens installed in classrooms, public spaces, retail areas, or interactive meeting rooms may encounter accidental contact during everyday use.
Traditional SMD packages leave individual components more exposed on the display surface. Physical impact can potentially damage individual LED packages, particularly where people work or move close to the screen.
COB encapsulation provides another layer of physical protection around the LED chips. This does not make a display immune to damage, but the integrated structure can provide greater resistance to everyday contact than exposed packaged components. Such characteristics become relevant when comparing an indoor LED video wall intended for frequent public interaction with one positioned behind a controlled-access barrier.
Repair And Maintenance Considerations
Maintenance costs depend heavily on the structure of the display. SMD products can offer straightforward component-level or module-level servicing because individual LED packages are familiar and widely used across the industry.
COB products approach maintenance differently. Damage to the encapsulated surface may require specialized repair procedures, equipment, or replacement modules. Consequently, service capability should be evaluated before procurement rather than treated as an afterthought.
Another consideration involves screen accessibility. Front-service structures can simplify maintenance where the display is mounted directly against a wall. Rear access may be more practical in other installations, particularly when a service corridor already exists.
Comparing Total Cost Of Ownership
Purchase price provides only a partial view of value. Installation labor, spare modules, maintenance frequency, power consumption, service requirements, and expected operating life all contribute to total cost of ownership.
COB may carry a higher initial cost in some configurations because of its manufacturing process and specialized production requirements. That premium can make more sense when surface durability, fine pixel pitch, and long-term use are important project priorities.
SMD may remain attractive where larger pixel pitches, straightforward maintenance, or budget-sensitive installations are involved. Neither construction should be considered universally superior; project conditions determine which economic model is more appropriate.
Choosing The Right Technology
Content type should be considered alongside physical conditions. Detailed financial dashboards, medical imagery, control-room interfaces, and premium video presentations can benefit from fine pixel pitches because viewers may sit only a short distance from the screen.
Large advertising-style graphics or presentations viewed from farther away may not require the same density. Under those circumstances, SMD technology can provide sufficient image performance without paying for specifications that the audience cannot meaningfully perceive.
For buyers comparing a cob LED display, the evaluation should therefore include pixel pitch, viewing distance, surface protection, service arrangements, installation method, and projected maintenance costs. DS Series specifications can serve as one reference when examining fine-pitch COB options, but the final choice should remain connected to the actual operating environment.
Conclusion
COB and SMD represent different engineering approaches rather than a simple winner-versus-loser comparison. Fine pixel pitch, physical protection, service procedures, and lifecycle economics can shift the balance depending on the application. Close-viewing environments may place greater value on integrated surface construction, while projects prioritizing familiar maintenance methods and cost control may find SMD more suitable. With options such as the 0.7mm and 1.2mm DS Series, Ledman demonstrates how COB technology can be positioned for demanding indoor visual applications while leaving the final decision to project-specific requirements.
